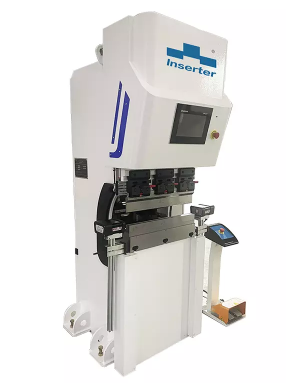

120KN 4 Axes System Mini Full Electric CNC Press Brake

Yeni

120KN 4 Axes System Mini Full Electric CNC Press Brake

CNC System Axis: D1,D2,X,R Bending Force: 120KN Open Height: 420mm

CNC System Axis: D1,D2,X,R

Bending Force: 120KN

Open Height: 420mm

12 Ton 4 Axis Full Electric Servo Press Brake

Electric servo press brakes are highly versatile and suitable for a variety of applications,including precision sheet metal bending.small household appliances,and computer and equipment enclosures.They are designed for bending metal materials and are well suited for precision sheet metal components and mechanical manufacturing parts.



Main Features

  • Dual servo motor Drive

  • 100% Pure electric power, with no oil

  • Using heavy-duty high-precision ball screw

  • Up to 35% faster compared to a hydraulic press brake

  • Friendly user interface



Product Specification

Bending Force 12Ton
Bending Length 600mm
Axis 4
Distance Between Column 450mm
Throat Depth 200mm
Stroke 120mm
Opening Height 420mm
Back Gauge Stroke 200mm
Main Motro Power 2*2.9KW
Motor SANYO
CNC System ECO-10ES
Approach Speed 200mm/s
Return Speed 200mm/s
Bending Speed 30mm/s
Repeat Positioning Accuracy ±0.01mm
Size 750*750*2020mm
Weight 1350kg
