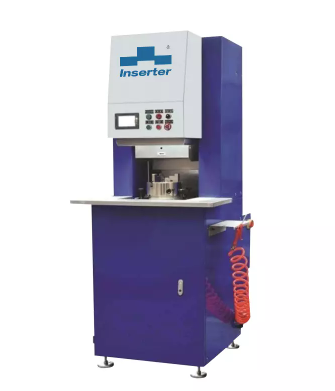

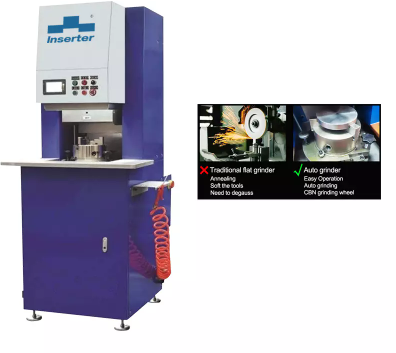

Accurate Regrinding Automatic Sharpening Punch Press Tool Grinder

Yeni

Accurate Regrinding Automatic Sharpening Punch Press Tool Grinder

CBN φ: 150mm Max Grinding Diameter:200mm

WG Series Punch Press Tool Grinding Machine

Punch Grinder is a tool that can be put on the surface of a grinding machine for grinding punches. It is also capable of undertaking cylindrical grinding automatically.



Main Features

  • The three-claw tray can tilt 0- -10 degrees to meet the grinding inclined surface and roof mold

  • The grinding roof mold can be positioned through the pin to ensure the complete symmetry of the grinding punch and avoid the partial load force during cutting

  • No manual compensation is required after the sand wheel is wear.The grinding process does not require manual involvement

  • Automatic sharpening(Automatic tool setting, automatic removal)

  • PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.

  • Grinding accuracy: flatness±0.01MM

  • The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening

  • Automatic lubrication system

  • Automatic cooling system

  • Automatic liquid level detection system

  • Automatic filtration system

  • Safety door protection and alarm function

  • Grinding overload protection system

  • Spindle upper limit alarm function

  • Emergency stop alarm function

  • Interrupt return function

  • Exhaust system helps trap remaining swarf



Product Specification



Voltage AC380V,50HZ
Table Motor & Rotating 0.55 KW, 60 RPM
Spindle Motor & Rotating 2.2 KW,3000RPM
Cooling Motor 0.12KW
Maximum grinding diameter Ø200
Maximum grinding 1mm
Maximum grinding stroke 250mm
The diameter of grinding wheel CBN Ø150
Grinding range 0.001-0.02mm
Weight of Machine 600KG
