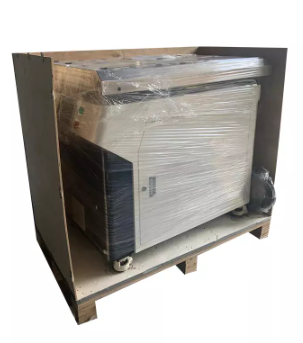

BF890 Independent Control System Automatic Bending Follower Supports

Yeni

BF890 Independent Control System Automatic Bending Follower Supports

Load Capacity: 80KG Bend As Closed As: 90° Matching Press Brake: Up stroke

Bending Follower Supports 100% Labor Saving...

Free your hands from the large sheet metal

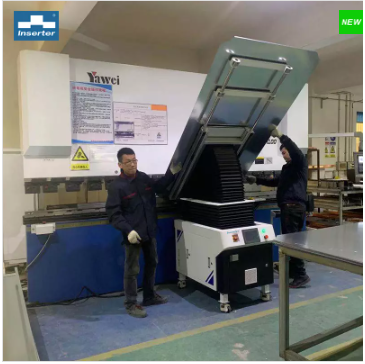

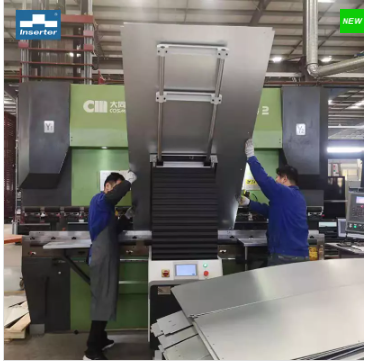

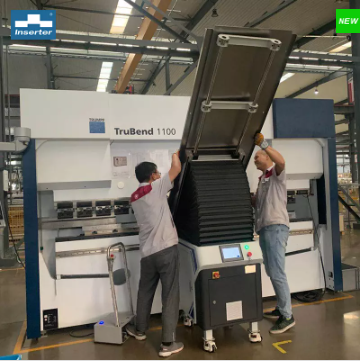

Bending follower supports is the best way to support large sheets for bending. Bending follow-up machine is controlled by the CNC,following and supporting the sheet during the bending process.



Main Featrues

  • Suitable for AMADA,TRUMPF,Salvagnini,Yawei...

  • One follow-up device can be used with multiple press brake

  • Self developed independent control system, no need to modified press brake

  • Table height, installation distance and other parameter adjustments, fully intelligent matching press brake

  • Accurately read displacement data,optical scale data keep 100% synchronization

  • Can be used with double folding edge mold



Technical Specifications



Model BF890 BFH890 BEH1090 BEH1030 BEH2090 BEH2030 BEH3090 BEH3030 BEH5090 BEH5030
Load capacity(kg) 80 80 100 100 200 200 300 300 500 500
Lift angle 90° 90° 90° 30° 90° 30° 90° 30° 90° 30°
Table length 970mm 970mm 1280mm 1280mm 1280mm 1280mm 1280mm 1280mm 1280mm 1280mm
Length extension 2596mm 2596mm 2670mm 2670mm 2670mm 2670mm 2670mm 2670mm 2670mm 2670mm
Table width 705mm 705mm 700mm 700mm 700mm 700mm 700mm 700mm 700mm 700mm
Table height 940mm 1060mm 870mm 1050mm 870mm 1050mm 870mm 1050mm 870mm 1050mm
Height adjustment 93mm 153mm 175.5mm 104.5mm 175.5mm 104.5mm 175.5mm 104.5mm 175.5mm 104.5mm
Total power 4kw 4kw 5kw 5kw 6kw 6kw 8kw 8kw 10kw 10kw
High wall plate avoidance 275mm 215mm 180mm 180mm 180mm 180mm 180mm 180mm 180mm 180mm
Foot switch(standard) / / / / / /
Composite membrane function / / / / / /
Two machine linkage(optional)
Sucker/magnet

(optional)

Matching up stroke
Matching down stroke /
