Digital Multi-axis BC-1200S Multilateral Panel Bender

Yeni

Digital Multi-axis BC-1200S Multilateral Panel Bender

Max. Bending Length: 1200mm Max. Bending Height: 170mm Min. Continuous Bending Speed: 0.2s/bend

Suction Cup Type Intelligent Flexible Panel Bender

In modern manufacturing, high efficiency and flexible production drive the demand for precise bending technology. The BC-1200S Panel Bender meets this need with automated processes and adaptable tools, allowing it to handle a variety of bending requirements—such as circular arcs, flattening, and various angles—without changing the tooling.



Main Features

  • Advanced Servo Control: The fully digital servo system ensures precise movements and synchronization, delivering superior bending accuracy and speed.

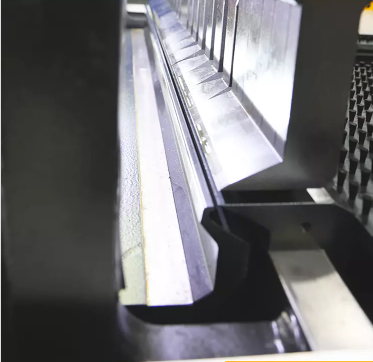

  • Versatile Tooling: Equipped with a multifunctional bending tool, it allows for rapid changes between various bending shapes without machine downtime.

  • Safety Features: Comprehensive protective enclosures and advanced electrical systems with real-time diagnostics provide a safe working environment.

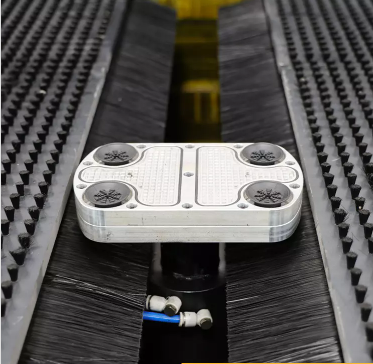

  • Suction Cup Holder: Secures workpieces effectively, ensuring stability and improving accuracy.

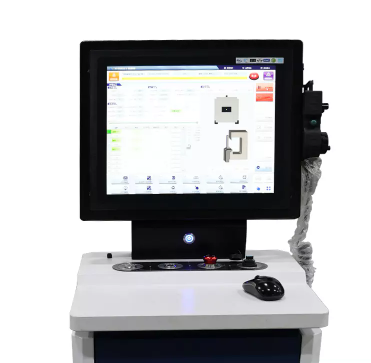

  • 3D Drawing Import Simulation: Reduces trial-and-error costs and optimizes production processes.

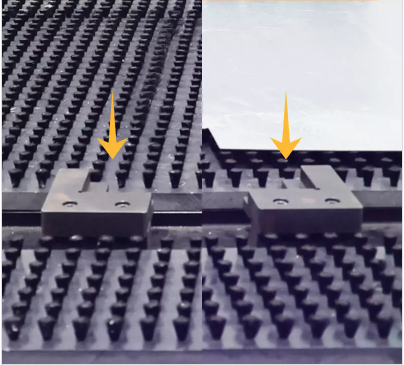

  • D1/D2 Left and Right Positioning Block: Provides precise positioning, eliminating alignment errors.

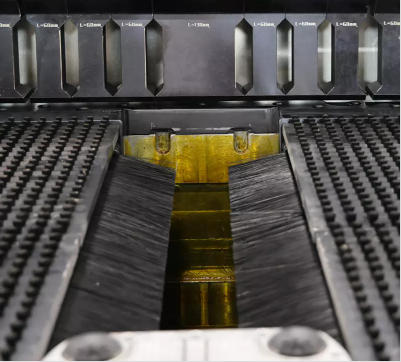

  • Brush Plate and Dust Brush: Cleans chips and debris, maintaining a tidy work area.



Product Specification

Feeding Structure Vacuum Suction Type
Max. Bending Length 1200mm
Max. Bending Height

170mm

Min. Bending Height 4mm
Min. Forming Size of Four Sides 300*180mm(customizable)
Min. Forming Size of Single Side 180mm
Min. Arc Radius 1.2mm
Min. Contionous Bending Speed 0.2s
Bending Angle 0-180 Degree
Number of Control Axes 11 standard
Max. Feeding Speed 120m/min
Size 3010*1630*2400mm
Max. Power 25KW
Average Power 8KW
Workbench Structure Brush and Universal Ball
Speed Adjustment Standard
Advanced Instruction Standard
Arc Command Standard
Flattening Command Standard
Loading Robot Interface Standard
