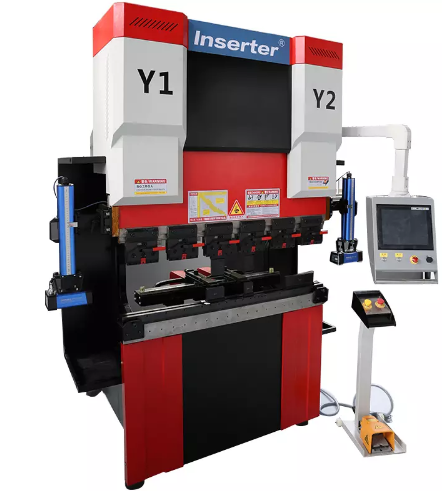

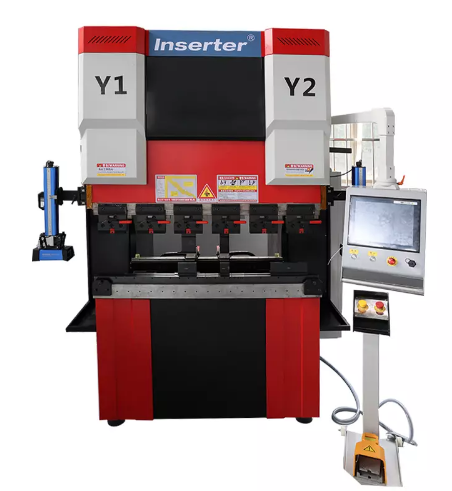

EP-3512 6 Axis Full Electric Servo Press Brake

Yeni

EP-3512 6 Axis Full Electric Servo Press Brake

EP-3512 6 Axis Full Electric Servo Press Brake

Akıllı, Sezgisel Olarak Çalıştırılabilen ve Güçlü Tam Elektrikli Servo Abkant Pres
Tam Elektrikli Servo Bükme Makinası firmamızın bağımsız fikri mülkiyet haklarına sahip olarak geliştirdiği bir üründür.
Özel yüksek yük taşıyan vida, kılavuz ray yapısı, ithal rulman montajı.Yüksek taşıma kapasitesi ve yüksek konumlandırma doğruluğu.



ANA ÖZELLİKLER

  • Mil Güç Kutusu

    Using heavy-duty ball screws and bearings; ultra-long life design and sealed protection design ensure that key components are not affected by external dust.

  • Single V die

    It has high hardness, good toughness, not easy to wear, even heat treatment, and can withstand strong impact.

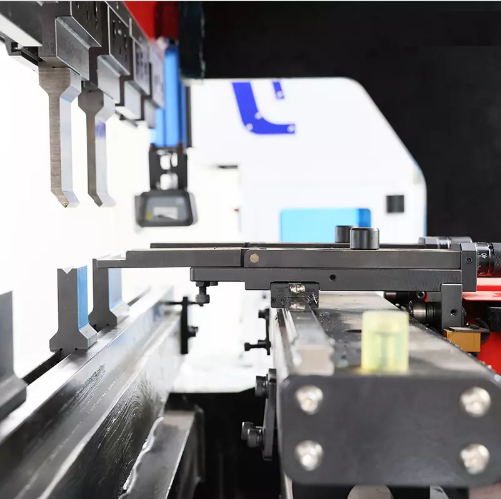

  • Backgauge

    It adopts 4 axes, all of which are driven by AC feed servo motors and high-precision reducers. Through system control, they can move to the required stop position accurately and quickly.

    When performing bending work, the backgauge can automatically avoid collision with the workpiece.

  • Bending Tools

    The processing dimensional tolerances of key parts of the tools have reached high precision, providing you with the best bending processing.

    Choosing high-precision bending machine tools can eliminate the need for secondary operations to correct errors.

  • Electrical System

    The electrical system has self-diagnostic capabilities.It adopts a closed electrical box and adopts an up-and-down convection arrangement of fans for heat dissipation.

Technical Data



Model EP-3512
Press Force 35tons
Bending Length 1200mm
Width Between Columns 950mm
Throat Depth 400mm
Throat Height 430mm
Speeds
Y Rapid 200mm/s
Y Working 50mm/s
Y Return Traverse Speed 200mm/s
X Rapid 400mm/s
R Working 200mm/s
Z1/Z2 Rapid 400mm/s
Precision
Y Axis Position Accuracy ±0.01mm
X Axis Position Accuracy ±0.02mm
R Axis Position Accuracy ±0.1mm
Z1/Z2 Axis Position Accuracy ±0.1mm
Working Range
Y Axis Stroke 180mm
X Axis Stroke 400mm
R Axis Stroke 140mm
