Excellent Flatness 4-High Precision Manual Leveling Machine

Yeni

Excellent Flatness 4-High Precision Manual Leveling Machine

Max. Leveling Width: 800mm Roller Diameter: 42mm Max. Plate Thickness: 3.5mm

Max. Leveling Width: 800mm
Roller Diameter: 42mm
Max. Plate Thickness: 3.5mm

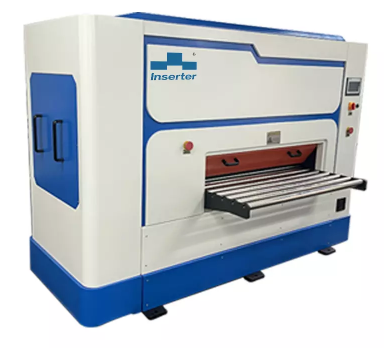

Excellent Flatness 4-High precision manual leveling machine

Why 4-high leveling machine?

In order to professionally attack the stress relief of metal materials, to the majority of customers to provide ultra-high cost-effective equipment and services, we hereby introduce our Excellent Flatness 4-High precision manual leveling machine, high-precision precision leveling machine can ensure stable, high-quality leveling effect, for you to save manpower, save man-hours, so that the product qualification rate has been a qualitative leap.



Main Features

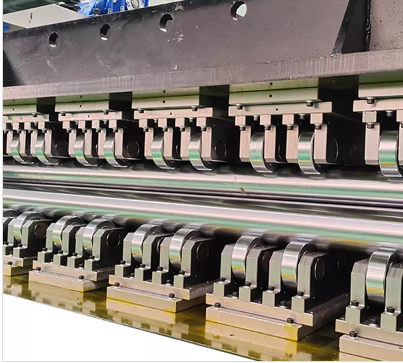

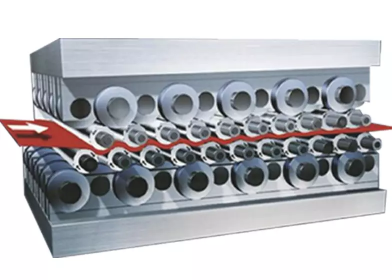

  • 4 high roller levelers, 19 leveling rollers, high leveling accuracy

  • Manually adjustable lower support for precise elimination of center bump and wavy edge defects

  • Faster and more economical than other leveling processes

  • Simple process, no need for extensive training

  • Gears are made of 20CrMnTi with IT6 grade accuracy...

Product Specification

Model LM-42-800M
Max. Leveling Width 800mm
Roller Diameter 42mm
Max. Plate Thickness 3.5mm
Leveling Thickness Range 0.8-3.5mm
Leveling Accuracy 0.05-0.2mm
Leveling Speed 0-6m/min
Leveling Roller Quantity 19pcs(upper 9pcs/Lower 10pcs)
Backup Roller Column Both Four Columns Upper and Lower Leveling Roller Set
Leveling Roller Gap Adjust Method Four Points Manual Adjust
Voltage AC 3 Phase 380V 50HZ
Size 1500*1450*1650mm
