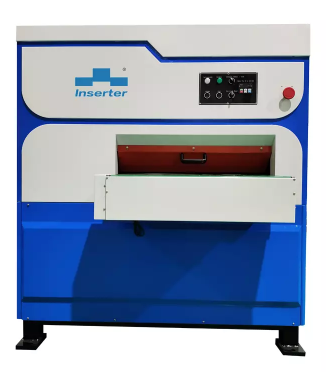

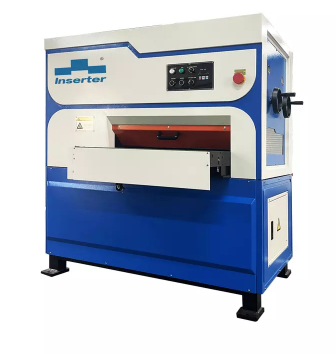

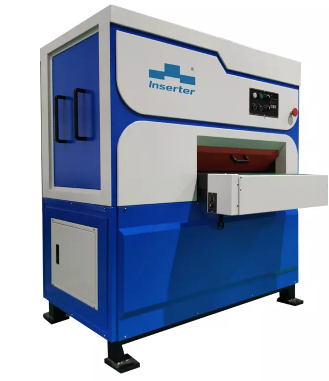

Excellent Flatness Reversible Leveling Rollers Straightening Machine

Yeni

Excellent Flatness Reversible Leveling Rollers Straightening Machine

Max. Leveling Width: 800mm Roller Diameter: 42mm Max. Plate Thickness: 3mm

Max. Leveling Width: 800mm
Roller Diameter: 42mm
Max. Plate Thickness: 3mm

4 High Precision Manual Leveling Machine

Why 4-high leveling machine?

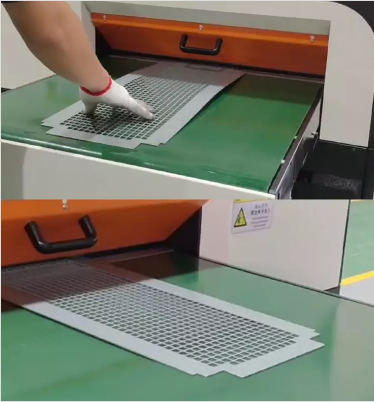

In the roller leveling process a sheet metal part passes through. way that the finished result is flat and almost stress-free. The 4-high leveling machine simple and fast in comparison to other leveling processes. Punched, laser-cut or flame-cut parts which require hours of manual straightening are leveled within a few seconds.



Main Features

  • 4-high roller leveller, 19pcs leveling roller, high leveling accuracy

  • No any hydraulic system

  • Flat and almost stress-free parts

  • Significantly faster and more economical than alternative leveling processes

  • Simple processes without extensive training requirements

  • Convenient for subsequent bending, deburring, drilling, grooving..



Product Specification

Model LM-42-800M
Max. Leveling Width 800mm
Roller Diameter 42mm
Max. Plate Thickness 3mm
Leveling Thickness Range 0.8-3.0mm
Min. Workpiece Size 10*70mm
Leveling Accuracy 0.05-0.2mm/㎡
Leveling Speed 0-6m/min
Leveling Roller Quantity 19pcs(upper 9pcs/Lower 10pcs)
Leveling Roller Surface Hardness HRC60~63
Leveling Roller Material Gr15
Backup Roller Column Both Four Columns Upper and Lower Leveling Roller Set
Leveling Roller Gap Adjust Method Four Points Manual Adjust
Voltage AC 3 Phase 380V 50HZ(can customize)
Size 1500*1450*1650mm
