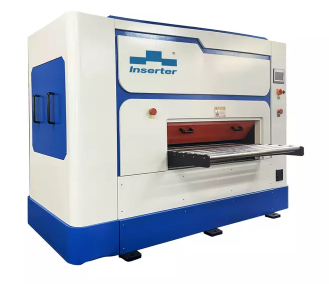

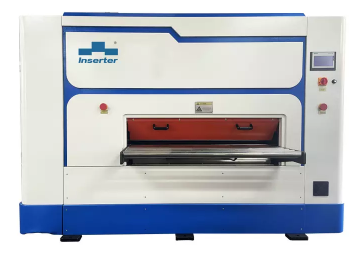

High Precision Sheet Metal CNC Servo Leveling Machine

Yeni

High Precision Sheet Metal CNC Servo Leveling Machine

Max. Leveling Width: 1300mm Roller Diameter: 50mm Max. Plate Thickness: 4mm

The Intuitive Solution for Sheet Metal Leveling

4-high Precision CNC Leveling Machine



Main Features

  • 4 high leveling roller,No any hydraulic system

  • Suitable for laser cut, stamped and plasma cut parts

  • Material thicknesses from 0.8 mm to 3.5 mm

  • Wide range of parts, the maximum width is 1300mm



Product Specification

Model LM-50-1300A
Max. Leveling Width 1300mm
Roller Diameter 50mm
Max. Plate Thickness 4mm
Leveling Thickness Range 1.0-4.0mm
Min. Workpiece Size 15*100mm
Leveling Accuracy 0.2-0.55mm/㎡
Leveling Speed 0-12m/min
Leveling Roller Quantity 19pcs(upper 9pcs/Lower 10pcs)
Leveling Roller Surface Hardness HRC60~65
Leveling Roller Material Gr15
Backup Roller Column Both Six Columns Up and Down
Leveling Roller Gap Adjust Method Four Points Auto Adjust Driven by Servo Motors
Voltage AC 3 Phase 380V 50HZ(can customize)
Size 2900*1800*1900mm
