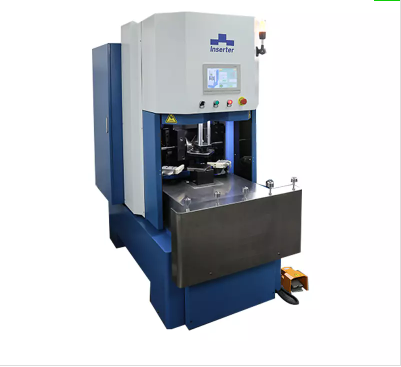

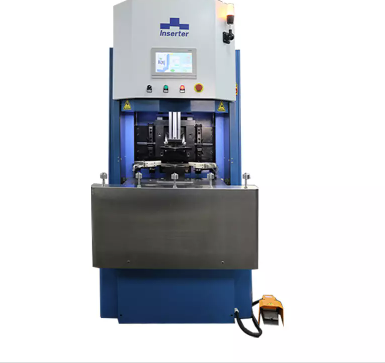

High Precision Sheet Panel Flexible Corner Former Machine

Yeni

High Precision Sheet Panel Flexible Corner Former Machine

Material: Cold rolled steel plate, Stainless steel plate, Aluminum plate Max. Processing Size: 200*200mm Min. Processing Size: 6000*6000mm

New Generation CNC Corner Former Machine

one-time corner forming without welding

Firstly I would like to introduce why we need to use corner forming machine? In the past, we needed bending, welding, and grinding to make a door panel. Now we don’t need welding and grinding with this corner forming machine, which greatly improves the efficiency.

This corner forming machine is upgraded on the basis of ACF, which makes more complicated cutting easier, more compact in structure, more convenient in operation and safer in operation.

Mainly used in aluminum curtain walls, electrical cabinets, door panels.



Main Features

  • High precision,No damage to coating

  • Fast corner forming without welding

  • Servo pump control, energy saving

  • Install light curtain,100% Safety system

  • Automatic positioning device

  • One-time corner forming and automatic cutting





Specification

Model CF-3050
Total Power 6KW
Voltage Access 3 phase 4 wire, 380V and 220V
Air Pressure Access >=0.8MPA

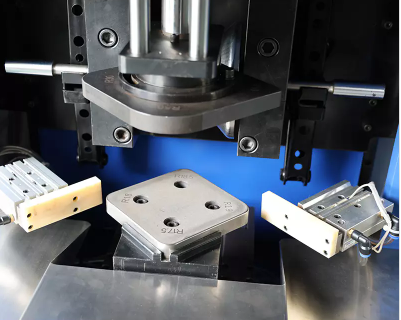

Mold Configuration Forming outer mold 1.5-50, forming inner mold 1.5-50, V-shaped cutter
Oil Pump Motor Hydraulic Servo Oil Pump Motor, 4.4KW
Processing Capacity Material Plate Thickness(mm) Flange Height(mm) Corner Radius R
Cold Rolled Steel Plate 0.6 ≤10

Outer R2-R50

Inside R0.8-R49

0.8 ≤15
1.0 ≤18
1.2 ≤20
1.5 ≤22
2.0 ≤25
3.0 ≤30
Stainless Steel 0.8 ≤10
1.0 ≤15
1.5 ≤22
2.0 ≤27
Aluminum Plate 0.8 ≤15
1.0 ≤18
1.5 ≤22
2.0 ≤25
2.5 ≤28
3.0 ≤30
Workpiece Size Min. 200*200mm Max. 6000*6000mm
Weight 2600kg
