IS Series High Precision 40 Ton Electric Servo Press Brake

Yeni

IS Series High Precision 40 Ton Electric Servo Press Brake

Model: IS-4016 Axis: 6 Press Capacity: 40 ton Bending Length: 1600mm

Model: IS-4016

Axis: 6
Press Capacity: 40 ton
Bending Length: 1600mm


IS series control system

The CNC system is a suspended operating station that can swing freely in the operating area, and the pedal-operated operating system can operate.It enable operator to do off-line programming.



True office offline programming

  • Consistency with the system in the equipment

  • Complete simulation verification of 2D simulated processing

  • Uploading to the server-connected equipment for direct scanning for production





Main features

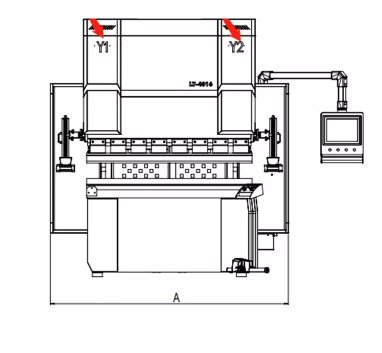

  • Y1/Y2 axis adopts grating scale or magnetic grating scale feedback full-closed loop control mode, repeat positioning accuracy of ±5μm

  • Intelligent safety light curtain monitoring ensures operator safety

  • Smart tool load monitoring ensures tool safety

  • Five-wire touch screen and the operation process is simple and fast

  • Bending pressure automatic calculation function

  • Angle intelligent compensation function

  • Arc continuous bending function

  • Die parameter library

  • Password protection function
