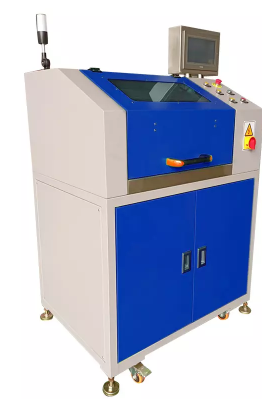

TG-V6 CNC Automatic Tool Grinding Machine for Grooving Machine

Yeni

TG-V6 CNC Automatic Tool Grinding Machine for Grooving Machine

Axis: 4 axis X,YZ,R Application: Grooving Machine

TG-V6 CNC Automatic Tool Grinding Machine for Grooving Machine

Grooving is an auxiliary process for bending and forming of metal materials. V-shaped grooves are cut out by cutting tools at the bending line where metal materials need to be bent and formed.There are various types of knives for CNC Grooving Machine.

Why white steel knife?

Stand knife(30°,45°,90°): difficult to grind special grooving angle.

   Grinding is difficult,and it is difficult to complete without skilled experience.

Why CNC grinding?

CNC Grinding: High precision,PLC controls the four axis to automatically complete the grinding,no rework.

Traditional Grinding: High difficulty,the annealing phenomenon of the material at too high temperature leads to a decrease in hardness.



Product Features

  • No burn the tool, no change the tool color and no change the hardness of the tool material

  • High precision; easy operation, high efficiency, save labor, and flexibly adjust the grinding angle

  • Coolant cooling and reduce dust, and the coolant can be reused

  • Ergonomics HMI, and the PLC controls the four axis to automatically complete the grinding

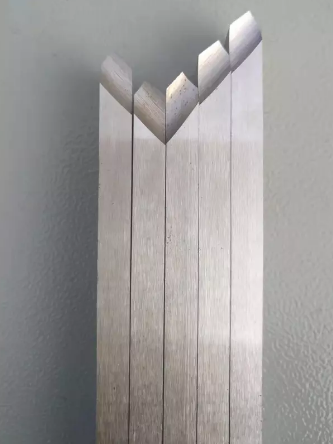

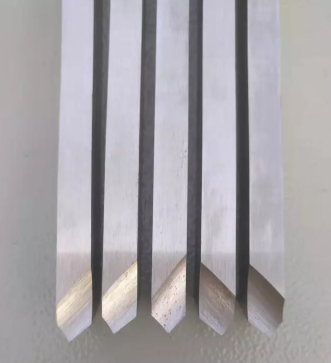

  • Grinding tool type and material: white steel (A: 4*16B: 6*12 C: 6*16)

  • Long life, built-in patented magnetic suction design,quickly eliminate internal iron filings





Product Specification

Model TG-V6
Grinding tool length range 50-200mm
Voltage 380V/3P/50HZ
Whole machine rated power 3.3KW
Relative humidity 10%-60%
Environment humidity 10℃-40℃
Rotate speed 0-300rmp/min
Stroke X axis 0-170mm
Stroke Y axis 0-25mm
Stroke Z axis 0-55mm
Stroke R axis 0-180mm
Size 1000*830*1665mm
Weight 350KG
